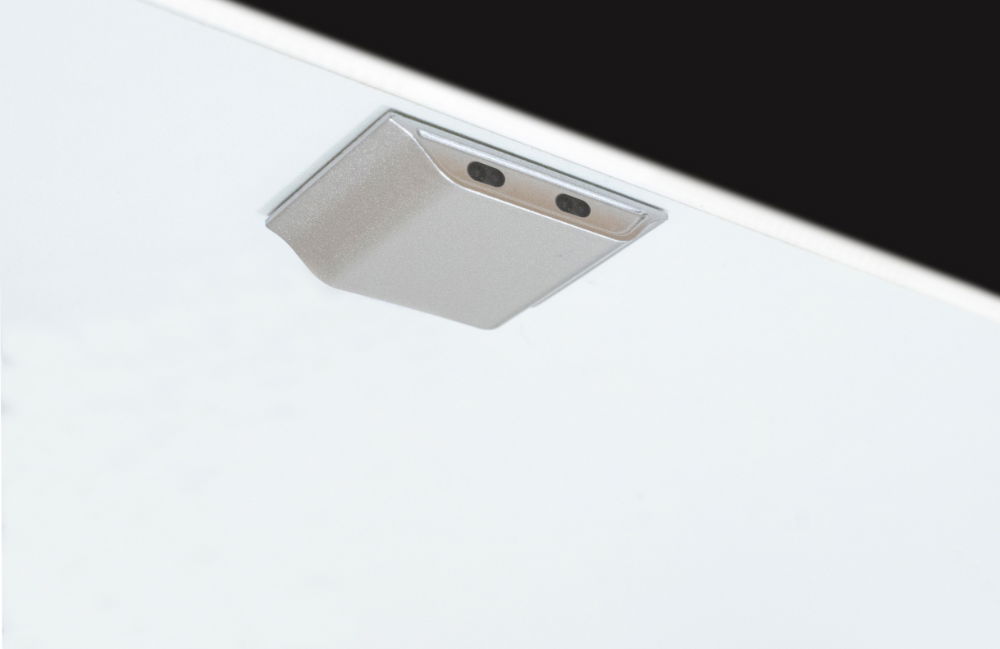

Slimline Infra Red Door Sensor


The Slimline soft start infra red door sensor switch is designed to work with single cabinet or cupboard door, by automatically turning a light on or off when a door is opened or closed. It is compatible with all of our 12Vdc LED lighting ranges, and offers a simple plug and play connection system. The unit includes connection for one light.

However for more than one light a 12 way distribution block is available to purchase separately.

Features a simple self adhesive fixing method.

A double door version is also available.


Stock Code: SY8929B

Single

Width 26.3mm
Height 6.5mm
Depth 23mm

Double

Width 36mm
Height 6.5mm
Depth 23mm
Power Supplu 12Vdc
Cable Length 800mm
Wattage 24W
IP Rating IP20
Mounting Surface
